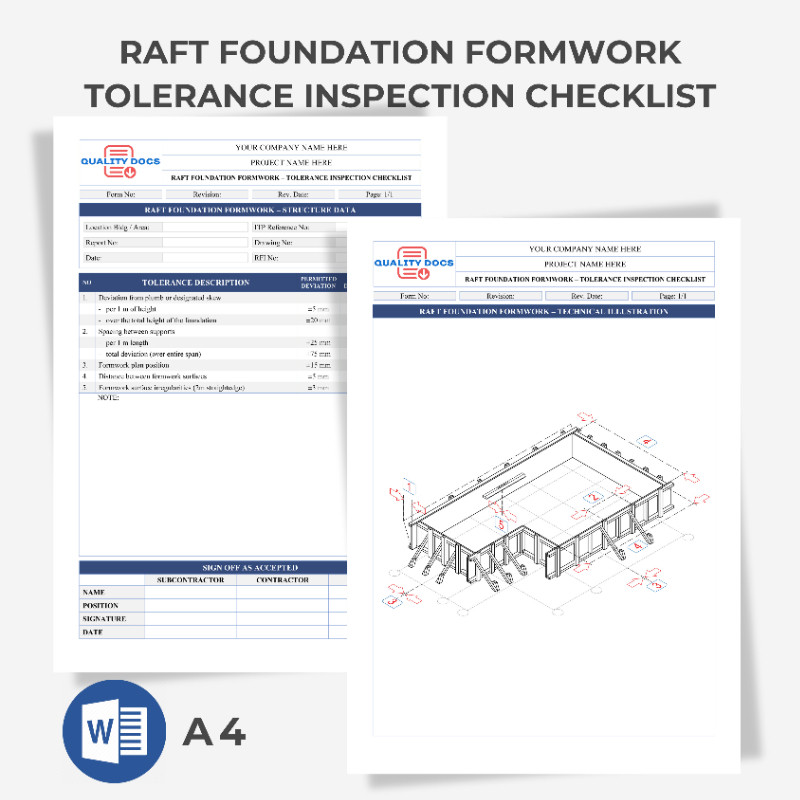

Raft Foundation Formwork – Tolerance Inspection Checklist
This editable MS Word template is designed to ensure dimensional compliance during formwork installation for a cast-in-place raft foundation. It helps site engineers, quality inspectors, and contractors verify critical tolerances in line with international construction standards.
Content Overview
· Deviation from Plumb or Skew: Checks verticality deviations of the formwork per meter and over the total height.
· Support Spacing: Verifies the alignment and spacing between supports across one-meter spans and full lengths.
· Plan Position of Formwork: Confirms horizontal alignment of formwork relative to layout drawings, with an allowable deviation.
· Formwork Width Accuracy: Measures the gap between opposing formwork surfaces.
· Surface Irregularities: Inspects for unevenness using a 2-meter straightedge.
Key Benefits of the Raft Foundation Formwork – Tolerance Inspection Checklist
· Improved Construction Accuracy: Ensures geometric precision of formwork for raft foundations, reducing reworks.
· Time-Saving Template: Editable MS Word format allows fast completion and immediate on-site use.
· International Standard Compliance: Aligned with construction best practices.
· Professional Documentation: Supports inspection records for Subcontractors, Contractors, and Customer acceptance.
· Supports QA/QC Systems: Ideal for integration into quality control plans and Inspection and Test Plans (ITPs).
Who is it Suitable For?
ü Construction Managers
ü Site Engineers
ü Quality Control Inspectors
ü Concrete Supervisors
ü General Contractors
ü QA/QC Consultancy Firms
ü Construction Advisory Services
ü Engineering and Design-Build Companies
Improve your construction quality assurance process and enhance your team’s efficiency with this essential digital download. Ensure precision and compliance in your raft foundation project today!
To access your digital downloads, first create an account on our website. Once you’ve completed the purchase, your files will be instantly available in your “My Account” area under both the “Purchased Items” and “Downloads” sections. You can download them at any time from there.
All products are available for instant download. Right after purchase, your files will be placed in your “My Account” under the “Purchased Items” and “Downloads” sections—no waiting required.
Yes, absolutely! All our document templates are provided in Microsoft Word format, allowing for easy customization to fit your specific project needs. Please note that technical illustrations are not editable.
Due to the nature of digital downloads, all sales are final. Refunds or exchanges are not offered, except as clearly stated in our Return and Refund Policy.
No. All products from Quality-Docs are for personal or internal business use only. Sharing or reselling is strictly prohibited as outlined in our Terms of Service.
We accept all major VISA and MasterCard credit and debit cards through our secure payment system.
