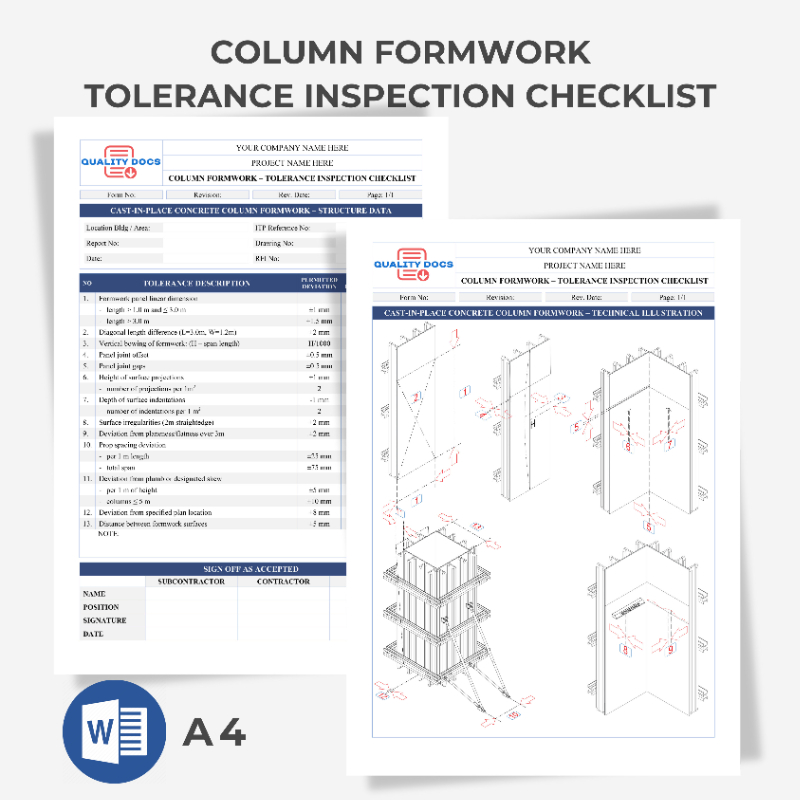

Cast-In-Place Concrete Column Formwork – Tolerance Inspection Checklist
This editable inspection checklist is tailored to help construction professionals verify the dimensional accuracy and alignment of cast-in-place concrete columns. Suitable for commercial and infrastructure projects, it promotes precision in vertical structural elements and reduces rework on site.
Content Overview
· Formwork Dimensional Accuracy: Details permitted deviations for linear dimensions and diagonal length difference, ensuring precise formwork construction.
· Alignment and Plumbness: Specifies tolerances for vertical bowing of formwork, deviation from plumb or designated skew per 1 m height and for columns ≤5m.
· Joint and Surface Quality: Outlines acceptable limits for panel joint offset, panel joint gaps, height and number of surface projections per 1m2.
· Surface Flatness and Straightness: Provides tolerances for surface irregularities (2m straightedge) and deviation from planeness/flatness over 3m.
· Prop Spacing and Overall Dimensions: Defines permitted deviations for prop spacing per 1m length and total span, along with the distance between formwork surfaces.
Key Benefits of the Cast-In-Place Concrete Column Formwork – Tolerance Inspection Checklist
· Improved Quality Assurance: Ensures precise formwork alignment and shape control for better concrete finish.
· Regulatory Compliance: Based on best construction practices aligning with ACI, BS EN and industry standards.
· Efficient Inspection Process: Simplifies the site QA/QC team’s work with a ready-to-use on-page template.
· Reduced Rework: Identifies misalignment early to avoid costly delays and material waste.
· Instant Access & Editable Format: Available as a downloadable, customizable template in editable format.
Who is it Suitable For?
ü Construction Quality Control Engineers
ü Site Engineers and Inspectors
ü Project Managers in Concrete Works
ü Civil Engineering Consultants
ü Construction Companies
ü Formwork Subcontractors
ü Engineering and QA/QC Advisory Firms
ü EPC Contractors and Infrastructure Builders
Improve your concrete construction quality and enhance your project efficiency with this essential Cast-In-Place Concrete Column Formwork – Tolerance Inspection Checklist. Download now to ensure precision and compliance on your next project!
