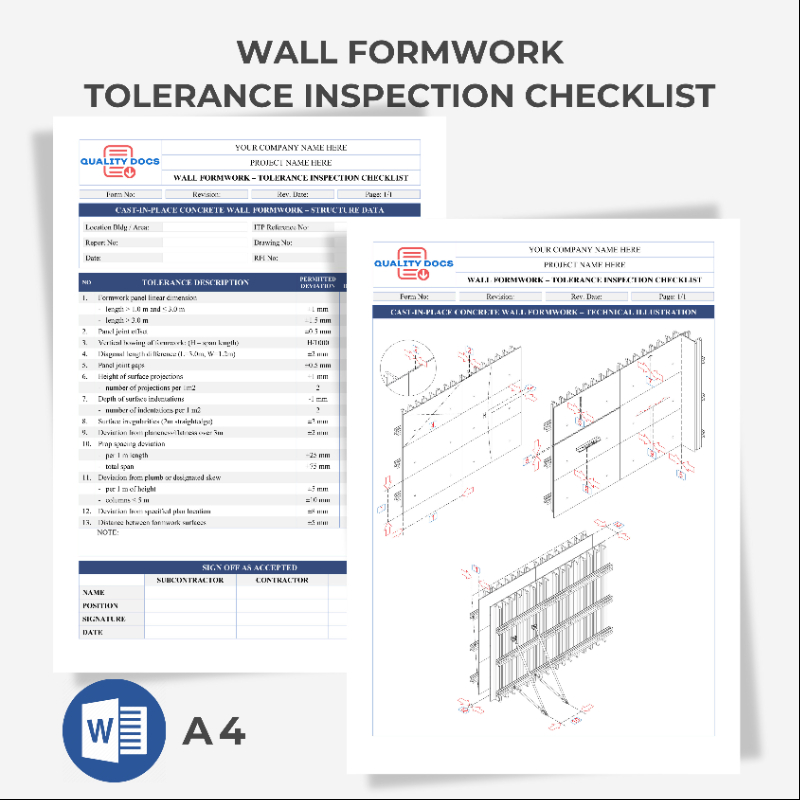

Cast-In-Place Concrete Wall Formwork – Tolerance Inspection Checklist

This checklist is applicable to a wide range of cast-in-place concrete projects, from industrial buildings to residential developments, ensuring compliance with industry best practices and project specifications.

Content Overview

·        Technical Illustration: Provides a framework for technical illustrations related to cast-in-place concrete wall formwork, aiding in visual understanding and precise inspection.

·        Detailed Tolerance Description: Outlines specific permissible deviations for various formwork elements, including linear dimensions, panel joint offsets, vertical bowing and surface irregularities.

·        Reference Standards & Sign-Off: Cross-references tolerance descriptions with “Construction Best Practices” and includes a dedicated section for sign-off by the subcontractor, contractor, and customer, ensuring accountability and acceptance of the inspection results.

·        Dimensional Tolerance Criteria: Covers linear dimensions, diagonal differences, and allowable deviations for walls greater than 3 meter in length.

·        Surface Quality Checks: Provides limits for surface projections, indentations, and irregularities using a 2 m straightedge.

Key Benefits of the Cast-In-Place Concrete Wall Formwork – Tolerance Inspection Checklist

·        Improved Construction Quality: Helps ensure walls are built with dimensional accuracy and meet required tolerances.

·        Regulatory Compliance: Align with best practices from international construction standards for formwork inspection.

·        Field Efficiency: Enables fast, consistent, and professional inspection by engineers and QA/QC team on-site.

·        Reduced Rework Costs: Early detection of tolerance deviations prevents costly demolition and repair.

·        Professional Documentation: Supports record keeping and quality reporting with standardized acceptance fields.



Who is it Suitable For?

ü  General Contractors

ü  Concrete Subcontractors

ü  Construction Consultancy Firms

ü  Independent Quality Advisors

ü  General Contractors

ü  Concrete Subcontractors

ü  Construction Consultancy Firms

ü  Independent Quality Auditors

Improve your concrete construction quality and significantly reduce errors. Enhance your team’s precision and ensure every cast-in-place concrete wall meets the highest standards by downloading this essential checklist today!
