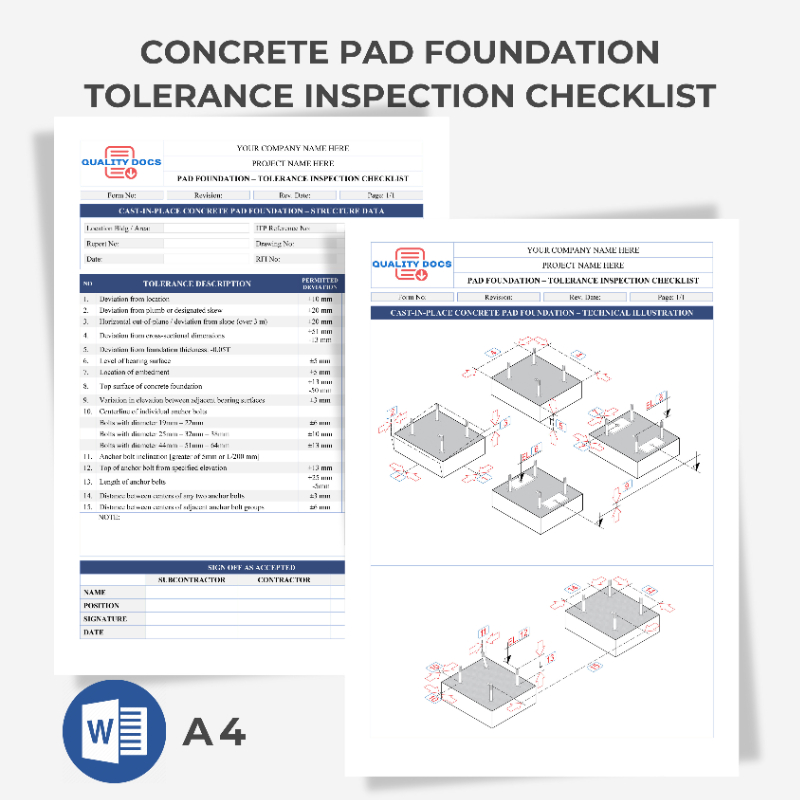

Cast-In-Place Concrete Pad Foundation – Tolerance Inspection Checklist
This professional digital checklist is designed for quality control inspections of cast-in-place concrete pad foundations. It ensures construction tolerances comply with international standards such as ACI 117 and BS EN 13670. Developed for instant download and on-site use, to monitor dimensional accuracy and reduce rework risks.
Content Overview
· Location Deviation Control: Ensures the pad foundation is placed within the designed location.
· Plumb and Skew Compliance: Verifies verticality and intended skew angle within the tolerance.
· Dimensional Accuracy: Control deviations in cross-sectional size, thickness and foundation slope over 3 meters.
· Anchor Bolt Placement: Inspects spacing, elevation, and inclination of anchor bolts, referencing ACI 117 and BS 13670 standards.
· Top Surface & Bearing Elevation: Confirms the pad top level and bearing surface within allowable tolerances.
Key Benefits of the Cast-In-Place Concrete Pad Foundation – Tolerance Inspection Checklist
· Ensures Dimensional Compliance: Helps monitor tolerances for structural alignment, reducing the risks of misalignment and costly rework.
· Improves Quality Assurance: Supports ISO compliant quality control practices at every stage of the foundation pour.
· Reduces Construction Errors: Clearly defined limits for deviation protect against project delays caused by foundation non-conformance.
· Compliance with International Standards: Build on ACI 117, BS EN 13670, and other global codes for high-level quality assurance.
· Instant Digital Access: Delivered as a downloadable and editable template – ready to use on any construction site.
Who is it Suitable For?
ü Construction Quality Engineers
ü Site Inspectors
ü Project QA/QC Coordinators
ü Concrete Works Foreman
ü QA/QC Departments of Building Contractors
ü Concrete Foundation Subcontractors
ü Construction Advisory Firms
ü Infrastructure Development Companies
Enhance your quality control process with this precise and standards-based inspection tool. Improve compliance, reduce risks, and support your team’s excellence with every foundation pour.
To access your digital downloads, first create an account on our website. Once you’ve completed the purchase, your files will be instantly available in your “My Account” area under both the “Purchased Items” and “Downloads” sections. You can download them at any time from there.
All products are available for instant download. Right after purchase, your files will be placed in your “My Account” under the “Purchased Items” and “Downloads” sections—no waiting required.
Yes, absolutely! All our document templates are provided in Microsoft Word format, allowing for easy customization to fit your specific project needs. Please note that technical illustrations are not editable.
Due to the nature of digital downloads, all sales are final. Refunds or exchanges are not offered, except as clearly stated in our Return and Refund Policy.
No. All products from Quality-Docs are for personal or internal business use only. Sharing or reselling is strictly prohibited as outlined in our Terms of Service.
We accept all major VISA and MasterCard credit and debit cards through our secure payment system.
