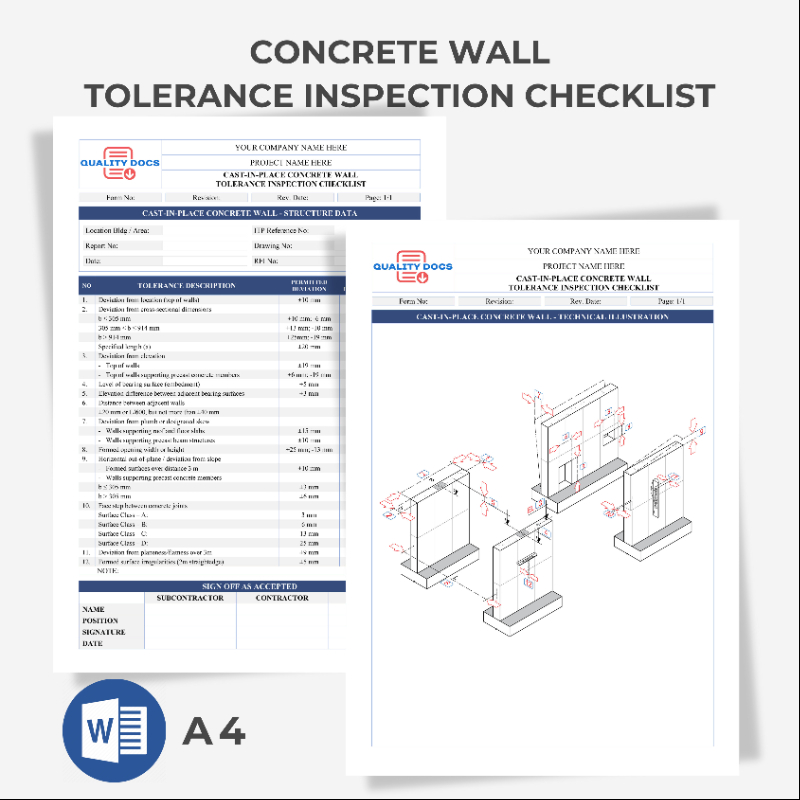

Cast-In-Place Concrete Wall – Tolerance Inspection Checklist

This editable inspection checklist template is developed to ensure dimensional accuracy and tolerance compliance for cast-in-place concrete wall construction. The document applies to vertical wall elements in commercial, industrial, and infrastructure projects.

Content Overview

·        Dimensional Tolerance Verification: Includes permitted deviations for wall thickness, length, elevation, plumb, and slope according to ACI 117 and other industry standards.

·        Location and Alignment Control: Assesses deviation in wall positioning and spacing between adjacent walls.

·        Surface and Planeness Inspection: Captures limits for surface irregularities, face steps at joints, and overall flatness tolerance using a 2m or 3m straightedge.

·        Precast Support and Opening Checks: Ensures precision for walls supporting precast components and checks compliance in formed openings.

·        Acceptance and Sign-Off: Includes Subcontractor, Contractor, and Customer sign-off fields for traceability and quality documentation.

Key Benefits of the Cast-In-Place Concrete Wall – Tolerance Inspection Checklist

·        Stay Compliant: Designed around key industry standards like ACI 117 and BS EN 13670, this checklist helps you meet client, consultant, and legal requirements.

·        Reduces Rework Costs:  Identifies deviation early to avoid costly repairs and delays in structural works.

·        Risk Mitigation: Identifies potential deviations early, preventing costly reworks and structural issues down the line.

·        Make Inspection Easier: With a clear format and defined criteria, site inspections become faster, more consistent, and easier to manage.

·        Build with Confidence: This checklist helps ensure your concrete walls are constructed accurately and within allowable tolerances, minimizing costly mistakes.

Who is it Suitable For?

ü  Construction Managers

ü  Quality Control Inspectors

ü  Site Engineers

ü  Project QA/QC Coordinators

ü  Civil Construction Companies

ü  Engineering Consultants

ü  Infrastructure Development Firms

ü  Construction Advisory Services

Improve your project’s quality assurance processes and enhance compliance. Download this essential Cast-In-Place Wall – Tolerance Inspection Checklist today!
