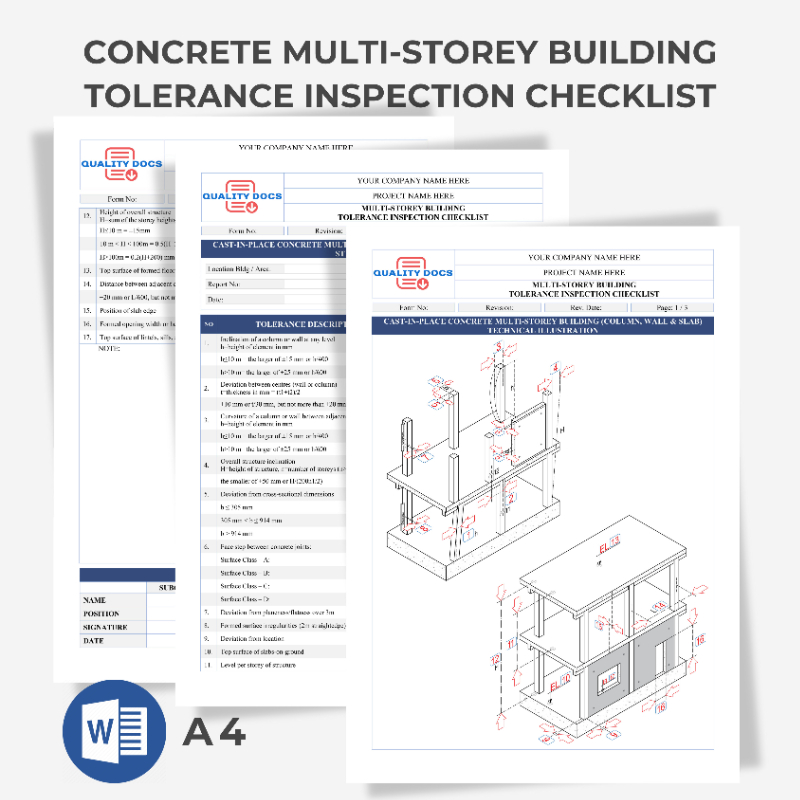

Cast-In-Place Concrete Multi-Storey Building - Tolerance Inspection Checklist

This professional inspection checklist is developed for cast-in-place concrete elements in multi-storey buildings, including columns, walls, and slabs. It defines tolerance limits for structural alignment, dimensions, surface finish, and flatness to ensure high-quality construction execution.

Content Overview

·        Detailed Tolerance Parameters: Specifies permissible deviations for key concrete elements, including the inclination of columns and walls, deviation between centers, and curvature.

·        Dimensional Accuracy Checks: Provides guidelines for verifying cross-sectional dimensions, face step between concrete joints, and overall structural heights.

·        Surface Quality Assessment: Includes criteria for evaluating deviation from planeness/flatness over 3m and formed surface irregularities using a 2m straightedge.

·        Positioning and Level Verification: Outlines procedures for inspecting deviation from location, level per storey, and the position of slab edges.

·        Standard-Based Tolerances: Cross-references tolerances with widely accepted standards such as BS EN 13670, ACI 117, and National Structural Concrete Specification, ensuring compliance with international best practices.

Key Benefits of the Cast-In-Place Concrete Multi-Storey Building - Tolerance Inspection Checklist

·        Quality Assurance: Systematizes the inspection process, ensuring all critical concrete tolerances are checked consistently and accurately.

·        Risk Mitigation: Helps identify and address potential deviations early, preventing structural issues, costly repairs and project delays.

·        Regulatory Compliance: Facilitates adherence to international and national construction standards, minimizing the risk of non-compliance.

·        Improved Project Efficiency: Streamlines quality control workflows, saving time and resources by providing a clear, actionable framework for inspections.

·        QA/QC Documentation: Provides an easy-to-use, standardized tool to document inspections and communicate with Subcontractors and Customers.

Who is it Suitable For?

ü  Construction Managers

ü  Quality Managers

ü  Site Engineers

ü  Quality Inspectors

ü  Construction Companies

ü  Engineering Consulting Firms

ü  Quality Assurance Firms

ü  Construction Management Advisors

Improve your project's quality control and ensure compliance with our comprehensive Cast-In-Place Concrete Multi-Storey Building Tolerance Inspection Checklist. Enhance your team's efficiency and deliver superior concrete structures with confidence.
