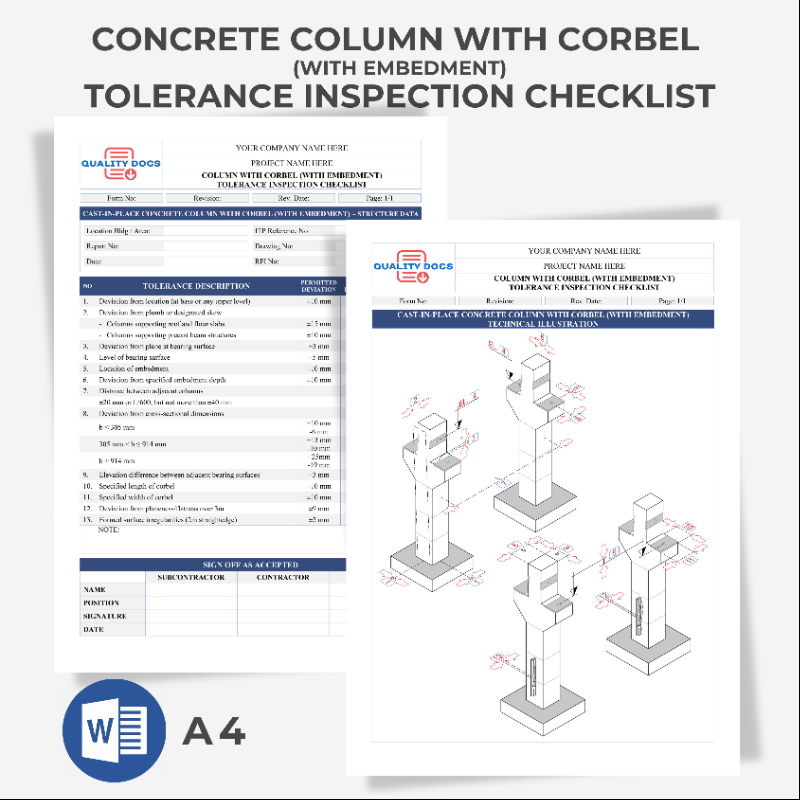

Cast-In-Place Concrete Column with Corbel (with embedment) – Tolerance Inspection Checklist

Control the dimensional accuracy of cast-in-place reinforced concrete columns that incorporate corbels and embedded items. Use it across industrial, commercial, infrastructure, and oil & gas projects where column-supported loads, attached precast components, or equipment seats demand tight tolerances.

Content Overview

·        Dimensional & Location Tolerance Table: Record permitted vs. actual deviations for column position, plumb/skew, spacing between adjacent columns, and cross-section sizes.

·        Corbel & Bearing Surface Checks: Verify specified corbel length/width, bearing plane, and level to ensure proper load transfer to supported members or equipment.

·        Embedment Position & Depth Verification: Capture location and depth data for embedded plats, anchor inserts or hardware critical to connection fit-up.

·        Surface Flatness & Finish Control: Measure planeness/flatness over 3 m and formed surface irregularities with 2 m straightedge.

·        Project Record & Acceptance Sign-Offs: Fields for project identifiers (ITP ref, drawing no, RFIs), inspection results, and subcontractor/contractor/customer acceptance signatures for audit traceability.

Key Benefits of the Cast-In-Place Concrete Column with Corbel (with embedment) – Tolerance Inspection Checklist

·        Rapid Field Verification: Structured table reduces time spent interpreting multiple standards and speeds on-site dimensional checks.

·        Reduced Rework & Claims Exposure: Early detection of out-of-tolerance column or corbel dimensions helps avoid costly re-formwork, shim packs, or retrofit anchors.

·        Standards-Aligned QA Evidence: Documents compliance with ACI 117, BS EN 13670, NZS 3109, and National Structural Concrete Specification tolerances for defensible quality records.

·        Improved Trade Coordination: Clear embedment and bearing data supports steel erection, precast installation, pipe supports, and equipment setting.

·        Professional Documentation & Audit Trail: Printable/fillable MS Word creates consistent inspection records for ISO 9001 Audits, client turnover dossiers, and dispute resolution.

Who is it Suitable For?

ü  Construction Managers / Project Engineers

ü  QA/QC Inspectors & Quality Managers

ü  Structural & Civil Engineers

ü  Site Supervisors & Foreman



ü  General Contractors & EPC Contractors

ü  Concrete & Equipment Installation Subcontractors

ü  Oil & Gas / Industrial Plant Owners

ü  Engineering Consulting & Advisory Firms

Improve dimensional control, documentation quality, and cross-trade coordination on your next pour. Download now to enhance your team’s compliance, reduce rework, and deliver higher-standard concrete results.
