Cast-In-Place Concrete Column (with anchor bolts) – Tolerance Inspection Checklist

This editable digital checklist is designed to verify construction tolerances for cast-in-place concrete columns with embedded anchor bolts. The scope covers essential dimensional and positional tolerances from the base to the final anchor bolt installation, crucial for structural integrity and subsequent steelwork erection.

Content Overview

·        Dimensional Tolerances: Includes 15+ standard-compliant inspection points for column position, verticality, flatness, and cross-section.

·        Anchor Bolt Verification: Covers bolt spacing, centerline, inclination, and elevation deviation control.

·        Surface and Bearing Checks: Outlines planeness, formed surface irregularities, and bearing level limits.

·        Reference-Based Standards: Fully aligned with ACI 117, BS EN 13670, NZS 3109, and National Structural Concrete Specifications.

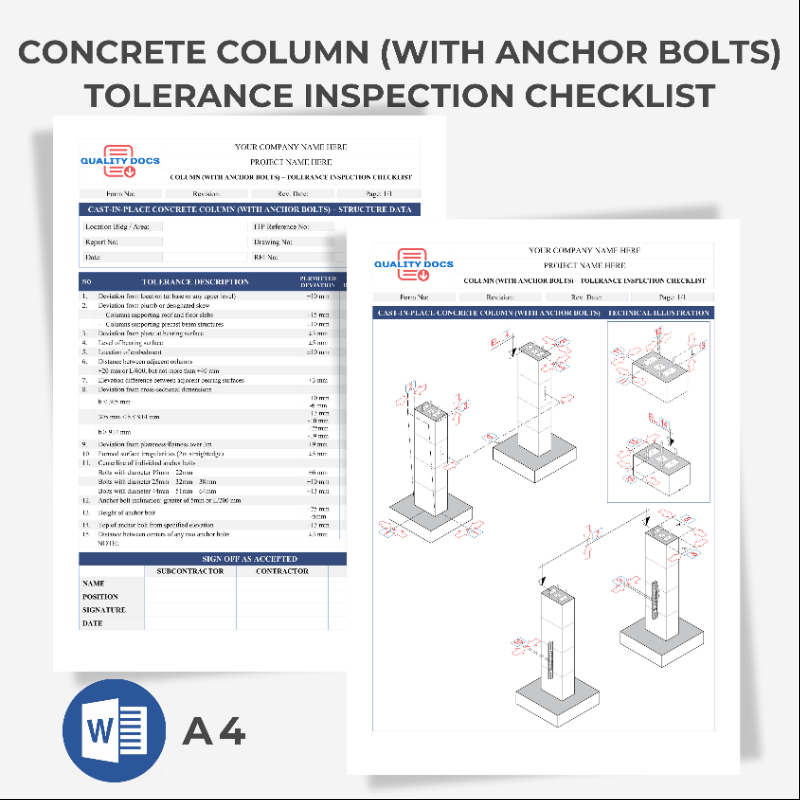

·        Technical Illustration & Sign-Off Section: Features a clean one-page layout with a technical sketch and approval fields for Contractor, Subcontractor, and Customer.

Key Benefits of the Cast-In-Place Concrete Column (with anchor bolts) – Tolerance Inspection Checklist

·        Improved Construction Accuracy: Ensures dimensional precision for critical load-bearing vertical elements.

·        International Standards Compliance: Facilitates adherence to critical industry standards like ACI 117, BS EN 13670, AISC 303, and National Structural Concrete Specifications.

·        Risk Mitigation: Proactively identifies and addresses potential deviations, reducing the risk of structural issues and costly rectifications during the later stages.

·        Reduces Rework Costs: Helps identify tolerance breaches early, minimizing costly corrective actions.

·        Instant Digital Access: Downloadable format allows immediate use on laptops, tablets and mobile devices.

Who is it Suitable For?

ü  Construction Managers

ü  Quality Managers

ü  Quality Control Inspectors

ü  Structural Supervisors

ü  Civil Engineering Contractors

ü  Construction QA/QC Consultant Companies

ü  Structural Design & Supervision Firms

Improve your concrete construction quality and enhance your team’s inspection efficiency with this essential Cast-In-Place Concrete Column Tolerance Inspection Checklist!
